Types of Metal

Shop all Products

Types of Metal

Types of Metal
FRACTIONS TO DECIMAL CONVERSION
PIPE SCHEDULES
GAUGE CHART - SHEET / WIRE
Shop these Types of Metal Categories
  • Steel

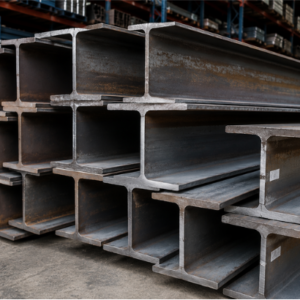

    Steel

    Steel is strong and cost effective, and steel is the most widely used metal worldwide....

    SHOP THIS ITEM
  • Stainless Steel

    Stainless Steel

    Stainless Steel is a steel alloy containing chromium, well known for its corrosion resistance where...

    SHOP THIS ITEM
  • Aluminum

    Aluminum

    Aluminum is a lightweight, silvery-white, soft, and malleable metal with many uses: Properties: Aluminum is non-magnetic, ductile,...

    SHOP THIS ITEM
  • Copper

    Copper

    Copper – an orange-reddish metal, it is highly malleable, with high thermal and electrical conductivity....

    SHOP THIS ITEM
  • Brass

    Brass

    Brass – an alloy made of copper and zinc, it has high malleability and a...

    SHOP THIS ITEM
  • Galvanized

    Galvanized

    Galvanized steel is used in many industries and for many purposes, including: Construction: Used in...

    SHOP THIS ITEM
  • Titanium

    Titanium

    Titanium is a strong, lightweight, silvery-gray transition metal known for its high strength-to-weight ratio, corrosion...

    SHOP THIS ITEM

* Prices are subject to change without notice due to fluctuations in the metals market. | All “Value Length” and “Value Pack” item measurements are subject to standard mill tolerances. | Products may be manufactured several thousandths of an inch over or under the stated dimensions and still be within acceptable mill tolerances. All bar, tube, structural, pipe, sheet, plate, and similar products sold on our website are custom cut to the lengths and sizes selected by the customer at the time of purchase. These are not stocked as pre-cut items. Because each order is cut specifically to customer specifications, all cut materials are considered custom products and are not eligible for cancellation, return, or exchange once production has begun. Our standard cutting tolerances are:

  • Length: +0.125″ / -0.062″
  • During the cutting process, the saw blade removes approximately 1/16″ (kerf) of material. This is a normal part of the manufacturing process and is already included within the stated cutting tolerances.
metals 4 u logo
Your One-Stop Metal Shop
The right Product
The right People
Providing the Right Service!
chart
metals 4 u logo
Your One-Stop Metal Shop
The right Product
The right People
Providing the Right Service!

Schedule 10, 40, 80 Pipe Dimensions

Pipe
Size*
O.D.
(in.)
Schedule (10, 40, 80)
Wall Thickness (in.)**
Sch.10 Sch.40 Sch.80
Wall (in) I.D. (in) Wall (in) I.D. (in) Wall (in) I.D. (in)

1/8" 0.41 od 0.049 in 0.312 id 0.07 in 0.269 id
Weight
(lbs/ft.)		 Steel 0.183 lbs/ft 0.247 lbs/ft
Stainless
Aluminum
1/4" 0.54 od 0.065 in 0.410 id 0.090 in 0.364 id 0.119 in 0.302 id
Weight
(lbs/ft.)		 Steel 0.333 lbs/ft 0.429 lbs/ft 0.535 lbs/ft
Stainless
Aluminum   0.147 lbs/ft
3/8" 0.675 od 0.065 in 0.545 id 0.091 in 0.493 id 0.126 in 0.423 id
Weight
(lbs/ft.)		 Steel 0.420 lbs/ft 0.570 lbs/ft 0.740 lbs/ft
Stainless
Aluminum   0.196 lbs/ft
1/2" 0.840 od 0.083 in 0.674 id 0.109 in 0.622 id 0.147 in 0.546 id
Weight
(lbs/ft.)		 Steel 0.670 lbs/ft 0.850 lbs/ft 1.090 lbs/ft
Stainless
Aluminum   0.294 lbs/ft 0.384 lbs/ft
3/4" 1.050 od 0.083 in 0.884 id 0.113 in 0.824 id 0.154 in 0.742 id
Weight
(lbs/ft.)		 Steel 0.86 lbs/ft 1.13 lbs/ft 1.48 lbs/ft
Stainless
Aluminum   0.391 0.520
1" 1.315 od 0.109 in 1.097 id 0.133 in 1.049 id 0.179 in 0.957 id
Weight
(lbs/ft.)		 Steel 1.41 lbs/ft 1.68 lbs/ft 2.17 lbs/ft
Stainless
Aluminum 0.481 lbs/ft 0.581 lbs/ft 0.781 lbs/ft
1-1/4" 1.66 od 0.109 in 1.442 id 0.140 in 1.380 id 0.191 in 1.278 id
Weight
(lbs/ft.)		 Steel 1.81 lbs/ft 2.27 lbs/ft 3.00 lbs/ft
Stainless
Aluminum 0.618 lbs/ft 0.785 lbs/ft 1.040 lbs/ft
1-1/2" 1.90 od 0.109 in 1.682 id 0.145 in 1.610 id 0.200 in 1.500 id
Weight
(lbs/ft.)		 Steel 2.09 lbs/ft 2.72 lbs/ft 3.63 lbs/ft
Stainless
Aluminum 0.714 lbs/ft 0.939 lbs/ft 1.260 lbs/ft
2" 2.375 od 0.109 in 2.157 id 0.154 in 2.067 id 0.218 in 1.939 id
Weight
(lbs/ft.)		 Steel 2.64 lbs/ft 3.66 lbs/ft 5.03 lbs/ft
Stainless
Aluminum 0.903 lbs/ft 1.260 lbs/ft 1.740 lbs/ft
2-1/2" 2.875 od 0.120 in 2.635 id 0.203 in 2.469 id 0.276 in 2.323 id
Weight
(lbs/ft.)		 Steel 3.53 lbs/ft 5.80 lbs/ft 7.67 lbs/ft
Stainless
Aluminum 1.209 lbs/ft 2.000 lbs/ft
3" 3.50 od 0.120 in 3.26 id 0.216 in 3.068 id 0.30 in 2.90 id
Weight
(lbs/ft.)		 Steel 4.34 lbs/ft 7.58 lbs/ft 10.26 lbs/ft
Stainless
Aluminum 1.483 lbs/ft 2.620 lbs/ft 3.55 lbs/ft
3-1/2" 4.00 od 0.120 in 3.76 id 0.226 in 3.550 id 0.318 in 3.360 id
Weight
(lbs/ft.)		 Steel 4.98 lbs/ft 9.12 lbs/ft 12.52 lbs/ft
Stainless
Aluminum   3.150 lbs/ft 4.33 lbs/ft
4" 4.50 od 0.120 in 4.26 id 0.237 in 4.026 id 0.337 in 3.826 id
Weight
(lbs/ft.)		 Steel 5.62 lbs/ft 10.80 lbs/ft 15.00 lbs/ft
Stainless
Aluminum 1.922 lbs/ft 3.730 lbs/ft 5.180 lbs/ft
5" 5.563 od 0.134 in 5.295 id 0.258 in 5.047 id 0.375 in 4.813 id
Weight
(lbs/ft.)		 Steel 7.78 lbs/ft 14.63 lbs/ft 20.80 lbs/ft
Stainless
Aluminum 2.660 lbs/ft 5.050 lbs/ft 7.190 lbs/ft
6" 6.625 od 0.134 in 6.357 id 0.280 in 6.065 id 0.432 in 5.761 id
Weight
(lbs/ft.)		 Steel 9.30 lbs/ft 18.99 lbs/ft 28.60 lbs/ft
Stainless
Aluminum 3.181 lbs/ft 6.560 lbs/ft 9.880 lbs/ft
8" 8.625 od 0.148 in 8.329 id 0.322 in 7.981 id 0.500 in 7.625 id
Weight
(lbs/ft.)		 Steel 13.41 lbs/ft 28.58 lbs/ft 43.43 lbs/ft
Stainless
Aluminum   9.88 lbs/ft 15.010 lbs/ft
*Nominal sizes apply - Pipe Size is the generic Industry Size Standard for reference only
**Tolerances may vary slightly from each manufacturer
metals 4 u logo
Your One-Stop Metal Shop
The right Product
The right People
Providing the Right Service!

Wire Gauges and Sheet Metal Gauges / Weights

Ga = Gauge | Wgt = Weight
Ga# Sheet Steel Galvanized Steel Stainless Steel Aluminum Strip & Tubing
Ga
(in.)		 Wgt
(lb/ft2)		 Ga
(in.)		 Wgt
(lb/ft2)		 Ga
(in.)		 Wgt
(lb/ft2)		 Ga
(in.)		 Wgt
(lb/ft2)		 Ga
(in.)
38 0.0060       0.0062   0.0040
37 0.0064       0.0066   0.0045
36 0.0067       0.0070   0.0050   0.004
35 0.0075       0.0078   0.0056   0.005
34 0.0082       0.0086   0.0063   0.007
33 0.0090       0.0094   0.0071   0.008
32 0.0097       0.0102   0.0080   0.009
31 0.0105       0.0109   0.0089   0.010
30 0.0120 0.500 0.016 0.656 0.0125   0.0100 0.141 0.012
29 0.0135 0.563 0.017 0.719 0.0141   0.0113 0.160 0.013
28 0.0149 0.625 0.019 0.781 0.0156   0.0126 0.178 0.014
27 0.0164 0.688 0.020 0.844 0.0172   0.0142 0.200 0.016
26 0.0179 0.750 0.022 0.906 0.0187 0.756 0.0159 0.224 0.018
25 0.0209 0.875 0.025 1.031 0.0219   0.0179 0.253 0.020
24 0.0239 1.000 0.028 1.156 0.0250 1.008 0.0201 0.284 0.022
23 0.0269 1.125 0.031 1.281 0.0281   0.0226 0.319 0.025
22 0.0299 1.250 0.034 1.406 0.0312 1.26 0.0253 0.357 0.028
21 0.0329 1.375 0.037 1.531 0.0344   0.0285 0.402 0.032
20 0.0359 1.500 0.040 1.656 0.0375 1.512 0.0320 0.452 0.035
19 0.0418 1.750 0.046 1.906 0.0437   0.0359 0.507 0.042
18 0.0478 2.000 0.052 2.156 0.0500 2.016 0.0403 0.569 0.049
17 0.0538 2.250 0.058 2.406 0.0562   0.0453 0.639 0.058
16 0.0598 2.500 0.064 2.656 0.0625 2.52 0.0508 0.717 0.065
15 0.0673 2.813 0.071 2.969 0.0703   0.0571 0.806 0.072
14 0.0747 3.125 0.079 3.281 0.0781 3.15 0.0641 0.905 0.083
13 0.0897 3.750 0.093 3.906 0.0937   0.0720 1.016 0.095
12 0.1046 4.375 0.108 4.531 0.1094 4.41 0.0808 1.140 0.109
11 0.1196 5.000 0.123 5.156 0.1250 5.04 0.0907 1.280 0.120
10 0.1345 5.625 0.138 5.781 0.1406 5.67 0.1019 1.438 0.134
9 0.1495 6.250 0.153 6.406 0.1562   0.1144 1.614 0.148
8 0.1644 6.875 0.168 7.031 0.1719 6.93 0.1285 1.813 0.165
7 0.1793 7.500     0.1875 7.871 0.1443 2.036 0.180
6 0.1943 8.125     0.2031   0.1620 2.286 0.203
5 0.2092 8.750     0.2187   0.1819   0.220
4 0.2242 9.375     0.2344   0.2043   0.238
3 0.2391 10.00     0.2500   0.2294   0.259
2         0.2656   0.2576   0.284
1         0.2812   0.2893   0.300
