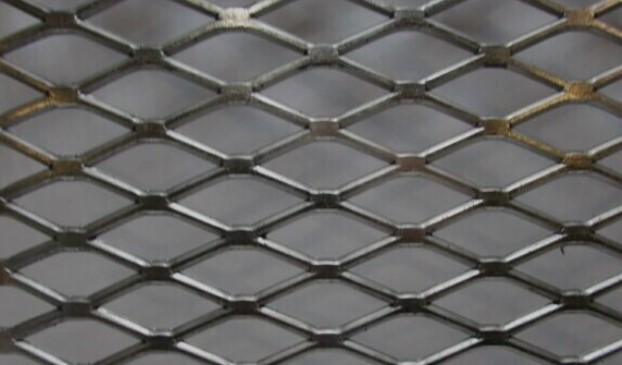

Stainless Steel Expanded Metal Flattened 3/4 #9 T304

Stainless Steel Expanded Metal Flattened 3/4 #9 T304
Stainless Steel Expanded Metal Flattened 3/4 #9 T304 - Image 2

Stainless Steel Expanded Metal Flattened 3/4 #9 T304

Price range: $85.42 through $236.26

Part#: SSFXM349 Categories ,
DESCRIPTION

Stainless steel expanded metal 3/4 #9 is a corrosion-resistant material with a diamond-shaped pattern of openings that can be used for a variety of applications:

  • Thickness: 0.119 in
  • Short way opening (SWO): 0.562 in
  • Long way opening (LWO): 1.697 in
  • Flattened sheet size: 4 ft x 8 ft

Some applications for stainless steel expanded metal 3/4 #9 include:

Air filtration, Architectural paneling, Baskets, ceiling tiles, Building facades, Fencing, Filters, Grills, Guard screens, and Security partitions.

Expanded metal is made by stretching and slitting sheets of metal to create diamond-shaped openings. It’s available in a variety of materials, gauges, opening sizes, and sheet sizes.

Expanded Metal Orientation Notice:

Expanded metal sheets are manufactured from standard 48″ × 96″ sheets with the diamonds running in the 96″ direction (Long Way of Diamond / LWD).Because smaller pieces are cut from these master sheets, the diamond orientation on cut-to-size pieces may vary depending on the final dimensions. For example, sizes such as 12″ × 48″, 24″ × 48″, and 36″ × 48″ will typically have the diamonds running across the width rather than the length of the piece. If a specific diamond orientation is required for your project, please contact us before placing your order so we can verify availability and orientation requirements.



* Prices subject to change without notice due to the Metals Market fluctuations. | All ‘value length’ and ‘value pack’ item measurements are subject to a “mill tolerance”. | A product may be produced several thousandths of an inch, either over or under the stated thickness, and still be within “mill tolerance”. Since we cut the material specifically for your order, they follow these tolerances: Length: +0.125″ / -0.062” – Please note that during cutting, the blade removes about 1/16″ of material (kerf). This is a normal part of the process and is already considered within the stated tolerances.
