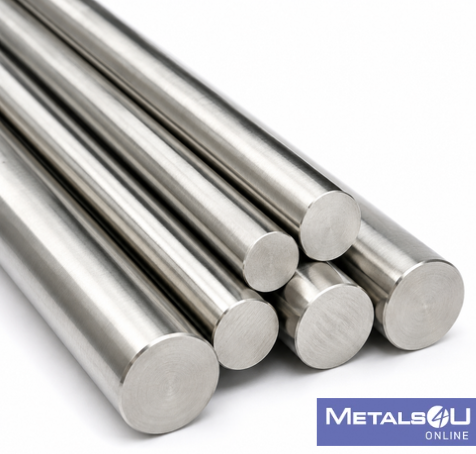

Stainless Steel Round bar in Type 316 (aka T-316) offers good corrosion resistance and good mechanical properties. Type 316 has superior corrosion resistance to chemicals, acids and salt water. It can be machined and welded by many common methods. Round bar is always specified by the Outside Diameter (od).
3/16" Stainless Steel Round T-316
SSRO6316
SHOP THIS ITEM $1.95 – $5.42 Select options This product has multiple variants. The options may be chosen on the product pageSSRO614
SHOP THIS ITEM $2.50 – $16.26 Select options This product has multiple variants. The options may be chosen on the product pageSSRO6516
SHOP THIS ITEM $3.18 – $25.18 Select options This product has multiple variants. The options may be chosen on the product page(Value Length starting at 48" long)*
SSRO6716
SHOP THIS ITEM $16.38 – $24.69 Select options This product has multiple variants. The options may be chosen on the product pageSSRO612
SHOP THIS ITEM $6.19 – $31.66 Select options This product has multiple variants. The options may be chosen on the product pageSSRO6916
SHOP THIS ITEM $13.76 – $39.52 Select options This product has multiple variants. The options may be chosen on the product pageSSRO658
SHOP THIS ITEM $8.97 – $48.31 Select options This product has multiple variants. The options may be chosen on the product pageSSRO634
SHOP THIS ITEM $12.36 – $70.19 Select options This product has multiple variants. The options may be chosen on the product pageSSRO678
SHOP THIS ITEM $16.38 – $94.25 Select options This product has multiple variants. The options may be chosen on the product pageSSRO61
SHOP THIS ITEM $21.01 – $123.55 Select options This product has multiple variants. The options may be chosen on the product pageSSRO6118
SHOP THIS ITEM $27.01 – $155.07 Select options This product has multiple variants. The options may be chosen on the product pageSSRO6114
SHOP THIS ITEM $32.87 – $190.24 Select options This product has multiple variants. The options may be chosen on the product pageSSRO6138
SHOP THIS ITEM $39.36 – $229.18 Select options This product has multiple variants. The options may be chosen on the product pageSSRO6112
SHOP THIS ITEM $46.46 – $271.76 Select options This product has multiple variants. The options may be chosen on the product pageSSRO6158
SHOP THIS ITEM $55.68 – $318.06 Select options This product has multiple variants. The options may be chosen on the product pageSSRO6134
SHOP THIS ITEM $47.00 Add to cartSSRO62
SHOP THIS ITEM $82.39 – $478.35 Select options This product has multiple variants. The options may be chosen on the product pageSSRO6218
SHOP THIS ITEM $92.73 – $540.38 Select options This product has multiple variants. The options may be chosen on the product pageSSRO6214
SHOP THIS ITEM $105.04 – $605.24 Select options This product has multiple variants. The options may be chosen on the product pageSSRO6238
SHOP THIS ITEM $116.46 – $673.75 Select options This product has multiple variants. The options may be chosen on the product pageSSRO6212
SHOP THIS ITEM $128.51 – $746.04 Select options This product has multiple variants. The options may be chosen on the product pageSSRO6234
SHOP THIS ITEM $154.44 – $901.66 Select options This product has multiple variants. The options may be chosen on the product pageSSRO63
SHOP THIS ITEM $183.04 – $1,073.26 Select options This product has multiple variants. The options may be chosen on the product pageSSRO64
SHOP THIS ITEM $321.50 – $1,903.99 Select options This product has multiple variants. The options may be chosen on the product pageSSRO6412
SHOP THIS ITEM $405.56 – $2,408.37 Select options This product has multiple variants. The options may be chosen on the product pageSSRO65
SHOP THIS ITEM $499.47 – $2,971.81 Select options This product has multiple variants. The options may be chosen on the product pageSSRO6512
SHOP THIS ITEM $603.36 – $3,595.18 Select options This product has multiple variants. The options may be chosen on the product pageSSRO638
SHOP THIS ITEM $12.38 – $17.94 Select options This product has multiple variants. The options may be chosen on the product page* Prices subject to change without notice due to the Metals Market fluctuations.
* All ‘value length’ and ‘value pack’ item measurements are subject to a “mill tolerance”. A product may be produced several thousandths of an inch, either over or under the stated thickness, and still be within “mill tolerance”. This does NOT apply to Cut To Size items. Those will be +.125″, -0.00″ tolerances.
CALIFORNIA PROPOSITION 65
This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Prices subject to change without notice due to the Metals Market fluctuations. | All ‘value length’ and ‘value pack’ item measurements are subject to a “mill tolerance”. | A product may be produced several thousandths of an inch, either over or under the stated thickness, and still be within “mill tolerance”. This does NOT apply to Cut To Size items. Those will be +.125”, -0.00” tolerances.
Pipe Size* |
O.D.
(in.) |
Schedule (10, 40, 80)
Wall Thickness (in.)** |
|||||
---|---|---|---|---|---|---|---|
Sch.10 | Sch.40 | Sch.80 | |||||
Wall (in) | I.D. (in) | Wall (in) | I.D. (in) | Wall (in) | I.D. (in) | ||
1/8" | 0.41 od | 0.049 in | 0.312 id | 0.07 in | 0.269 id | ||
Weight (lbs/ft.) |
Steel | 0.183 lbs/ft | 0.247 lbs/ft | ||||
Stainless | |||||||
Aluminum | |||||||
1/4" | 0.54 od | 0.065 in | 0.410 id | 0.090 in | 0.364 id | 0.119 in | 0.302 id |
Weight (lbs/ft.) |
Steel | 0.333 lbs/ft | 0.429 lbs/ft | 0.535 lbs/ft | |||
Stainless | |||||||
Aluminum | 0.147 lbs/ft | ||||||
3/8" | 0.675 od | 0.065 in | 0.545 id | 0.091 in | 0.493 id | 0.126 in | 0.423 id |
Weight (lbs/ft.) |
Steel | 0.420 lbs/ft | 0.570 lbs/ft | 0.740 lbs/ft | |||
Stainless | |||||||
Aluminum | 0.196 lbs/ft | ||||||
1/2" | 0.840 od | 0.083 in | 0.674 id | 0.109 in | 0.622 id | 0.147 in | 0.546 id |
Weight (lbs/ft.) |
Steel | 0.670 lbs/ft | 0.850 lbs/ft | 1.090 lbs/ft | |||
Stainless | |||||||
Aluminum | 0.294 lbs/ft | 0.384 lbs/ft | |||||
3/4" | 1.050 od | 0.083 in | 0.884 id | 0.113 in | 0.824 id | 0.154 in | 0.742 id |
Weight (lbs/ft.) |
Steel | 0.86 lbs/ft | 1.13 lbs/ft | 1.48 lbs/ft | |||
Stainless | |||||||
Aluminum | 0.391 | 0.520 | |||||
1" | 1.315 od | 0.109 in | 1.097 id | 0.133 in | 1.049 id | 0.179 in | 0.957 id |
Weight (lbs/ft.) |
Steel | 1.41 lbs/ft | 1.68 lbs/ft | 2.17 lbs/ft | |||
Stainless | |||||||
Aluminum | 0.481 lbs/ft | 0.581 lbs/ft | 0.781 lbs/ft | ||||
1-1/4" | 1.66 od | 0.109 in | 1.442 id | 0.140 in | 1.380 id | 0.191 in | 1.278 id |
Weight (lbs/ft.) |
Steel | 1.81 lbs/ft | 2.27 lbs/ft | 3.00 lbs/ft | |||
Stainless | |||||||
Aluminum | 0.618 lbs/ft | 0.785 lbs/ft | 1.040 lbs/ft | ||||
1-1/2" | 1.90 od | 0.109 in | 1.682 id | 0.145 in | 1.610 id | 0.200 in | 1.500 id |
Weight (lbs/ft.) |
Steel | 2.09 lbs/ft | 2.72 lbs/ft | 3.63 lbs/ft | |||
Stainless | |||||||
Aluminum | 0.714 lbs/ft | 0.939 lbs/ft | 1.260 lbs/ft | ||||
2" | 2.375 od | 0.109 in | 2.157 id | 0.154 in | 2.067 id | 0.218 in | 1.939 id |
Weight (lbs/ft.) |
Steel | 2.64 lbs/ft | 3.66 lbs/ft | 5.03 lbs/ft | |||
Stainless | |||||||
Aluminum | 0.903 lbs/ft | 1.260 lbs/ft | 1.740 lbs/ft | ||||
2-1/2" | 2.875 od | 0.120 in | 2.635 id | 0.203 in | 2.469 id | 0.276 in | 2.323 id |
Weight (lbs/ft.) |
Steel | 3.53 lbs/ft | 5.80 lbs/ft | 7.67 lbs/ft | |||
Stainless | |||||||
Aluminum | 1.209 lbs/ft | 2.000 lbs/ft | |||||
3" | 3.50 od | 0.120 in | 3.26 id | 0.216 in | 3.068 id | 0.30 in | 2.90 id |
Weight (lbs/ft.) |
Steel | 4.34 lbs/ft | 7.58 lbs/ft | 10.26 lbs/ft | |||
Stainless | |||||||
Aluminum | 1.483 lbs/ft | 2.620 lbs/ft | 3.55 lbs/ft | ||||
3-1/2" | 4.00 od | 0.120 in | 3.76 id | 0.226 in | 3.550 id | 0.318 in | 3.360 id |
Weight (lbs/ft.) |
Steel | 4.98 lbs/ft | 9.12 lbs/ft | 12.52 lbs/ft | |||
Stainless | |||||||
Aluminum | 3.150 lbs/ft | 4.33 lbs/ft | |||||
4" | 4.50 od | 0.120 in | 4.26 id | 0.237 in | 4.026 id | 0.337 in | 3.826 id |
Weight (lbs/ft.) |
Steel | 5.62 lbs/ft | 10.80 lbs/ft | 15.00 lbs/ft | |||
Stainless | |||||||
Aluminum | 1.922 lbs/ft | 3.730 lbs/ft | 5.180 lbs/ft | ||||
5" | 5.563 od | 0.134 in | 5.295 id | 0.258 in | 5.047 id | 0.375 in | 4.813 id |
Weight (lbs/ft.) |
Steel | 7.78 lbs/ft | 14.63 lbs/ft | 20.80 lbs/ft | |||
Stainless | |||||||
Aluminum | 2.660 lbs/ft | 5.050 lbs/ft | 7.190 lbs/ft | ||||
6" | 6.625 od | 0.134 in | 6.357 id | 0.280 in | 6.065 id | 0.432 in | 5.761 id |
Weight (lbs/ft.) |
Steel | 9.30 lbs/ft | 18.99 lbs/ft | 28.60 lbs/ft | |||
Stainless | |||||||
Aluminum | 3.181 lbs/ft | 6.560 lbs/ft | 9.880 lbs/ft | ||||
8" | 8.625 od | 0.148 in | 8.329 id | 0.322 in | 7.981 id | 0.500 in | 7.625 id |
Weight (lbs/ft.) |
Steel | 13.41 lbs/ft | 28.58 lbs/ft | 43.43 lbs/ft | |||
Stainless | |||||||
Aluminum | 9.88 lbs/ft | 15.010 lbs/ft | |||||
*Nominal sizes apply - Pipe Size is the generic Industry Size Standard for reference only **Tolerances may vary slightly from each manufacturer |
Ga# | Sheet Steel | Galvanized Steel | Stainless Steel | Aluminum | Strip & Tubing | ||||
---|---|---|---|---|---|---|---|---|---|
Ga (in.) |
Wgt (lb/ft2) |
Ga (in.) |
Wgt (lb/ft2) |
Ga (in.) |
Wgt (lb/ft2) |
Ga (in.) |
Wgt (lb/ft2) |
Ga (in.) |
|
38 | 0.0060 | 0.0062 | 0.0040 | ||||||
37 | 0.0064 | 0.0066 | 0.0045 | ||||||
36 | 0.0067 | 0.0070 | 0.0050 | 0.004 | |||||
35 | 0.0075 | 0.0078 | 0.0056 | 0.005 | |||||
34 | 0.0082 | 0.0086 | 0.0063 | 0.007 | |||||
33 | 0.0090 | 0.0094 | 0.0071 | 0.008 | |||||
32 | 0.0097 | 0.0102 | 0.0080 | 0.009 | |||||
31 | 0.0105 | 0.0109 | 0.0089 | 0.010 | |||||
30 | 0.0120 | 0.500 | 0.016 | 0.656 | 0.0125 | 0.0100 | 0.141 | 0.012 | |
29 | 0.0135 | 0.563 | 0.017 | 0.719 | 0.0141 | 0.0113 | 0.160 | 0.013 | |
28 | 0.0149 | 0.625 | 0.019 | 0.781 | 0.0156 | 0.0126 | 0.178 | 0.014 | |
27 | 0.0164 | 0.688 | 0.020 | 0.844 | 0.0172 | 0.0142 | 0.200 | 0.016 | |
26 | 0.0179 | 0.750 | 0.022 | 0.906 | 0.0187 | 0.756 | 0.0159 | 0.224 | 0.018 |
25 | 0.0209 | 0.875 | 0.025 | 1.031 | 0.0219 | 0.0179 | 0.253 | 0.020 | |
24 | 0.0239 | 1.000 | 0.028 | 1.156 | 0.0250 | 1.008 | 0.0201 | 0.284 | 0.022 |
23 | 0.0269 | 1.125 | 0.031 | 1.281 | 0.0281 | 0.0226 | 0.319 | 0.025 | |
22 | 0.0299 | 1.250 | 0.034 | 1.406 | 0.0312 | 1.26 | 0.0253 | 0.357 | 0.028 |
21 | 0.0329 | 1.375 | 0.037 | 1.531 | 0.0344 | 0.0285 | 0.402 | 0.032 | |
20 | 0.0359 | 1.500 | 0.040 | 1.656 | 0.0375 | 1.512 | 0.0320 | 0.452 | 0.035 |
19 | 0.0418 | 1.750 | 0.046 | 1.906 | 0.0437 | 0.0359 | 0.507 | 0.042 | |
18 | 0.0478 | 2.000 | 0.052 | 2.156 | 0.0500 | 2.016 | 0.0403 | 0.569 | 0.049 |
17 | 0.0538 | 2.250 | 0.058 | 2.406 | 0.0562 | 0.0453 | 0.639 | 0.058 | |
16 | 0.0598 | 2.500 | 0.064 | 2.656 | 0.0625 | 2.52 | 0.0508 | 0.717 | 0.065 |
15 | 0.0673 | 2.813 | 0.071 | 2.969 | 0.0703 | 0.0571 | 0.806 | 0.072 | |
14 | 0.0747 | 3.125 | 0.079 | 3.281 | 0.0781 | 3.15 | 0.0641 | 0.905 | 0.083 |
13 | 0.0897 | 3.750 | 0.093 | 3.906 | 0.0937 | 0.0720 | 1.016 | 0.095 | |
12 | 0.1046 | 4.375 | 0.108 | 4.531 | 0.1094 | 4.41 | 0.0808 | 1.140 | 0.109 |
11 | 0.1196 | 5.000 | 0.123 | 5.156 | 0.1250 | 5.04 | 0.0907 | 1.280 | 0.120 |
10 | 0.1345 | 5.625 | 0.138 | 5.781 | 0.1406 | 5.67 | 0.1019 | 1.438 | 0.134 |
9 | 0.1495 | 6.250 | 0.153 | 6.406 | 0.1562 | 0.1144 | 1.614 | 0.148 | |
8 | 0.1644 | 6.875 | 0.168 | 7.031 | 0.1719 | 6.93 | 0.1285 | 1.813 | 0.165 |
7 | 0.1793 | 7.500 | 0.1875 | 7.871 | 0.1443 | 2.036 | 0.180 | ||
6 | 0.1943 | 8.125 | 0.2031 | 0.1620 | 2.286 | 0.203 | |||
5 | 0.2092 | 8.750 | 0.2187 | 0.1819 | 0.220 | ||||
4 | 0.2242 | 9.375 | 0.2344 | 0.2043 | 0.238 | ||||
3 | 0.2391 | 10.00 | 0.2500 | 0.2294 | 0.259 | ||||
2 | 0.2656 | 0.2576 | 0.284 | ||||||
1 | 0.2812 | 0.2893 | 0.300 |
