$441.84
Steel bar grating is an open grid assembly of metal bars. It consists of bearing bars that run in one direction and are spaced by rigid attachment to cross bars running perpendicular to them or by bent connecting bars extending between them. If you have any questions please call us @ 214.231.1434

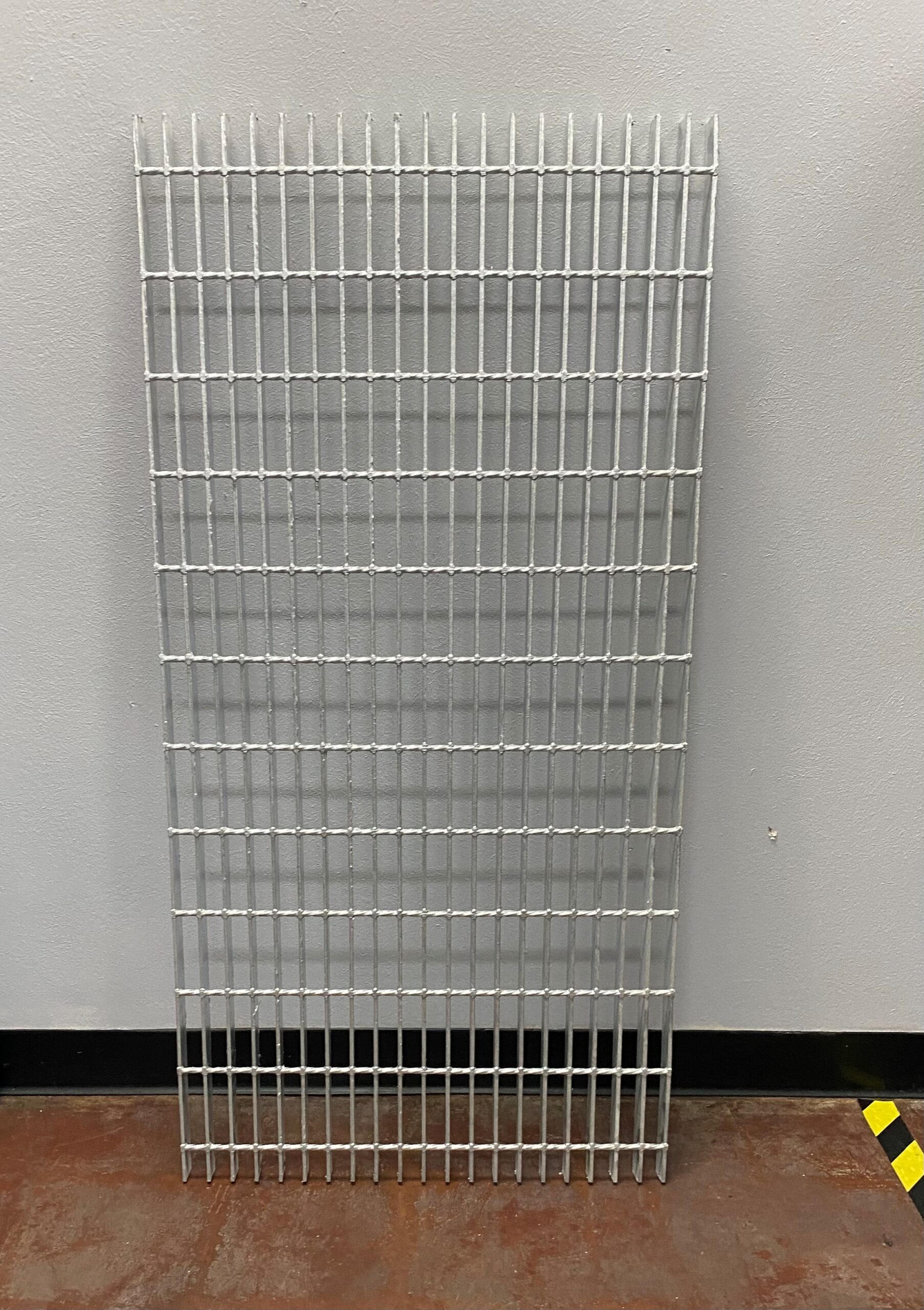

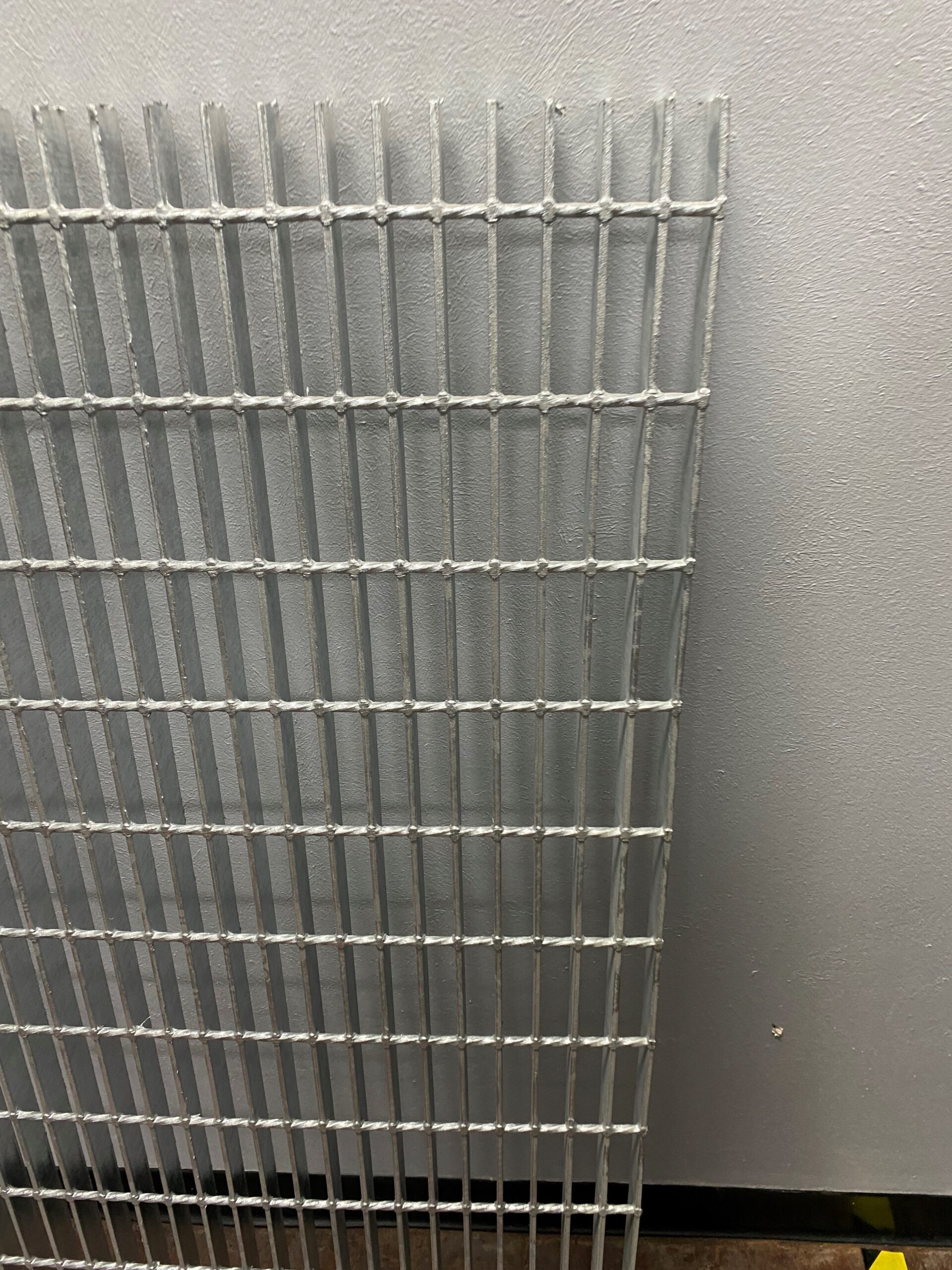

Galvanized Steel Bar Grating 3/16″ x 1-1/4″ (24″ x 48″) is manufactured from carbon steel bearing bars and cross bars that are welded or mechanically locked to create a durable, open-grid panel. The grating features 3/16-inch thick by 1-1/4-inch wide bearing bars, offering increased load-bearing capacity and enhanced structural support compared to narrower bar options. The hot-dip galvanized finish provides a protective zinc coating that resists corrosion, making it ideal for outdoor, industrial, and high-moisture environments. The 24″ x 48″ panel size allows for easy handling and efficient installation.
Applications:
Galvanized Steel Bar Grating 3/16″ x 1-1/4″ (24″ x 48″) is commonly used in:
• Walkways, platforms, and mezzanines
• Trench covers and drainage systems
• Industrial flooring and catwalks
• Stair treads and access ramps
• Equipment platforms and maintenance areas
• Outdoor and marine environments requiring corrosion resistance
Advantages:
• Increased strength: Wider bearing bars provide greater load capacity and stability
• Corrosion resistant: Galvanized coating protects against rust and harsh conditions
• Slip resistance: Open grid design improves traction and allows debris and liquids to pass through
• Low maintenance: Long-lasting performance in demanding environments
• Easy installation: Standard panel dimensions simplify placement and handling
Summary:
Galvanized Steel Bar Grating 3/16″ x 1-1/4″ (24″ x 48″) is a strong, corrosion-resistant solution for flooring, walkways, and structural platforms. Its wider bearing bars, durable construction, and protective finish make it ideal for industrial, commercial, and outdoor applications requiring reliable performance.
* Prices are subject to change without notice due to fluctuations in the metals market. | All “Value Length” and “Value Pack” item measurements are subject to standard mill tolerances. | Products may be manufactured several thousandths of an inch over or under the stated dimensions and still be within acceptable mill tolerances. All bar, tube, structural, pipe, sheet, plate, and similar products sold on our website are custom cut to the lengths and sizes selected by the customer at the time of purchase. These are not stocked as pre-cut items. Because each order is cut specifically to customer specifications, all cut materials are considered custom products and are not eligible for cancellation, return, or exchange once production has begun. Our standard cutting tolerances are:
