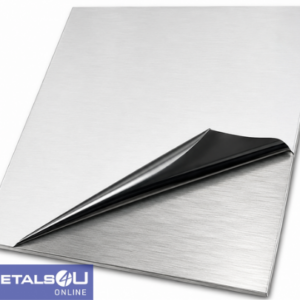

Stainless steel T-304 is a chromium-nickel alloy sheet that is known for its strength, durability, and resistance to corrosion:
T-304 stainless steel is resistant to many chemicals, water, and atmospheric corrosion. It is also non-magnetic when annealed.
T-304 stainless steel is often used in applications that require sanitation and cleanliness, such as food processing equipment, kitchen appliances, and bearings. It can also be used for architectural and design projects, paneling, signage, countertops, and backsplashes.
T-304 stainless steel is easy to fabricate. However, it may become slightly magnetic during working and is not heat treatable.
The low carbon version of T-304 stainless steel is called T-304L. T-304L is a better choice for environments that might cause intergranular corrosion. Another popular grade of stainless steel is T-316, which is often used for cutlery
(PVC Coated)
SSSH4244PVC
SHOP THIS ITEM $16.56 – $88.72 Select options This product has multiple variants. The options may be chosen on the product page(PVC Coated)
SSSH4224PVC
SHOP THIS ITEM $14.03 – $58.38 Select options This product has multiple variants. The options may be chosen on the product page(PVC Coated)
SSSH4204PVC
SHOP THIS ITEM $16.00 – $82.00 Select options This product has multiple variants. The options may be chosen on the product page
(PVC Coated)
SSSH4184PVC
SHOP THIS ITEM $18.40 – $110.80 Select options This product has multiple variants. The options may be chosen on the product page(PVC Coated)
SSSH4164PVC
SHOP THIS ITEM $20.50 – $136.00 Select options This product has multiple variants. The options may be chosen on the product page(PVC Coated)
SSSH4144PVC
SHOP THIS ITEM $22.50 – $160.00 Select options This product has multiple variants. The options may be chosen on the product page
PVC (Coated)
SSSH411
SHOP THIS ITEM $33.00 – $254.00 Select options This product has multiple variants. The options may be chosen on the product page
(PVC Coated)
SSSH42B16
SHOP THIS ITEM $24.00 – $135.00 Select options This product has multiple variants. The options may be chosen on the product page(PVC Coated)
SSSH42B14
SHOP THIS ITEM $26.00 – $159.00 Select options This product has multiple variants. The options may be chosen on the product page(PVC Coated)
SSSH42B11
SHOP THIS ITEM $33.00 – $244.00 Select options This product has multiple variants. The options may be chosen on the product page* Prices subject to change without notice due to the Metals Market fluctuations.
* All ‘value length’ and ‘value pack’ item measurements are subject to a “mill tolerance”. A product may be produced several thousandths of an inch, either over or under the stated thickness, and still be within “mill tolerance”. This does NOT apply to Cut To Size items. Those will be +.125″, -0.00″ tolerances.
1240 Majesty Dr., Dallas, TX-75247
P.O. Box 560626, Dallas, TX-75247
CALIFORNIA PROPOSITION 65
This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Prices subject to change without notice due to the Metals Market fluctuations. | All ‘value length’ and ‘value pack’ item measurements are subject to a “mill tolerance”. | A product may be produced several thousandths of an inch, either over or under the stated thickness, and still be within “mill tolerance”. This does NOT apply to Cut To Size items. Those will be +.125”, -0.00” tolerances.
|
Pipe Size* |
O.D.
(in.) |
Schedule (10, 40, 80)
Wall Thickness (in.)** |
|||||
|---|---|---|---|---|---|---|---|
| Sch.10 | Sch.40 | Sch.80 | |||||
| Wall (in) | I.D. (in) | Wall (in) | I.D. (in) | Wall (in) | I.D. (in) | ||
| 1/8" | 0.41 od | 0.049 in | 0.312 id | 0.07 in | 0.269 id | ||
|
Weight (lbs/ft.) |
Steel | 0.183 lbs/ft | 0.247 lbs/ft | ||||
| Stainless | |||||||
| Aluminum | |||||||
| 1/4" | 0.54 od | 0.065 in | 0.410 id | 0.090 in | 0.364 id | 0.119 in | 0.302 id |
|
Weight (lbs/ft.) |
Steel | 0.333 lbs/ft | 0.429 lbs/ft | 0.535 lbs/ft | |||
| Stainless | |||||||
| Aluminum | 0.147 lbs/ft | ||||||
| 3/8" | 0.675 od | 0.065 in | 0.545 id | 0.091 in | 0.493 id | 0.126 in | 0.423 id |
|
Weight (lbs/ft.) |
Steel | 0.420 lbs/ft | 0.570 lbs/ft | 0.740 lbs/ft | |||
| Stainless | |||||||
| Aluminum | 0.196 lbs/ft | ||||||
| 1/2" | 0.840 od | 0.083 in | 0.674 id | 0.109 in | 0.622 id | 0.147 in | 0.546 id |
|
Weight (lbs/ft.) |
Steel | 0.670 lbs/ft | 0.850 lbs/ft | 1.090 lbs/ft | |||
| Stainless | |||||||
| Aluminum | 0.294 lbs/ft | 0.384 lbs/ft | |||||
| 3/4" | 1.050 od | 0.083 in | 0.884 id | 0.113 in | 0.824 id | 0.154 in | 0.742 id |
|
Weight (lbs/ft.) |
Steel | 0.86 lbs/ft | 1.13 lbs/ft | 1.48 lbs/ft | |||
| Stainless | |||||||
| Aluminum | 0.391 | 0.520 | |||||
| 1" | 1.315 od | 0.109 in | 1.097 id | 0.133 in | 1.049 id | 0.179 in | 0.957 id |
|
Weight (lbs/ft.) |
Steel | 1.41 lbs/ft | 1.68 lbs/ft | 2.17 lbs/ft | |||
| Stainless | |||||||
| Aluminum | 0.481 lbs/ft | 0.581 lbs/ft | 0.781 lbs/ft | ||||
| 1-1/4" | 1.66 od | 0.109 in | 1.442 id | 0.140 in | 1.380 id | 0.191 in | 1.278 id |
|
Weight (lbs/ft.) |
Steel | 1.81 lbs/ft | 2.27 lbs/ft | 3.00 lbs/ft | |||
| Stainless | |||||||
| Aluminum | 0.618 lbs/ft | 0.785 lbs/ft | 1.040 lbs/ft | ||||
| 1-1/2" | 1.90 od | 0.109 in | 1.682 id | 0.145 in | 1.610 id | 0.200 in | 1.500 id |
|
Weight (lbs/ft.) |
Steel | 2.09 lbs/ft | 2.72 lbs/ft | 3.63 lbs/ft | |||
| Stainless | |||||||
| Aluminum | 0.714 lbs/ft | 0.939 lbs/ft | 1.260 lbs/ft | ||||
| 2" | 2.375 od | 0.109 in | 2.157 id | 0.154 in | 2.067 id | 0.218 in | 1.939 id |
|
Weight (lbs/ft.) |
Steel | 2.64 lbs/ft | 3.66 lbs/ft | 5.03 lbs/ft | |||
| Stainless | |||||||
| Aluminum | 0.903 lbs/ft | 1.260 lbs/ft | 1.740 lbs/ft | ||||
| 2-1/2" | 2.875 od | 0.120 in | 2.635 id | 0.203 in | 2.469 id | 0.276 in | 2.323 id |
|
Weight (lbs/ft.) |
Steel | 3.53 lbs/ft | 5.80 lbs/ft | 7.67 lbs/ft | |||
| Stainless | |||||||
| Aluminum | 1.209 lbs/ft | 2.000 lbs/ft | |||||
| 3" | 3.50 od | 0.120 in | 3.26 id | 0.216 in | 3.068 id | 0.30 in | 2.90 id |
|
Weight (lbs/ft.) |
Steel | 4.34 lbs/ft | 7.58 lbs/ft | 10.26 lbs/ft | |||
| Stainless | |||||||
| Aluminum | 1.483 lbs/ft | 2.620 lbs/ft | 3.55 lbs/ft | ||||
| 3-1/2" | 4.00 od | 0.120 in | 3.76 id | 0.226 in | 3.550 id | 0.318 in | 3.360 id |
|
Weight (lbs/ft.) |
Steel | 4.98 lbs/ft | 9.12 lbs/ft | 12.52 lbs/ft | |||
| Stainless | |||||||
| Aluminum | 3.150 lbs/ft | 4.33 lbs/ft | |||||
| 4" | 4.50 od | 0.120 in | 4.26 id | 0.237 in | 4.026 id | 0.337 in | 3.826 id |
|
Weight (lbs/ft.) |
Steel | 5.62 lbs/ft | 10.80 lbs/ft | 15.00 lbs/ft | |||
| Stainless | |||||||
| Aluminum | 1.922 lbs/ft | 3.730 lbs/ft | 5.180 lbs/ft | ||||
| 5" | 5.563 od | 0.134 in | 5.295 id | 0.258 in | 5.047 id | 0.375 in | 4.813 id |
|
Weight (lbs/ft.) |
Steel | 7.78 lbs/ft | 14.63 lbs/ft | 20.80 lbs/ft | |||
| Stainless | |||||||
| Aluminum | 2.660 lbs/ft | 5.050 lbs/ft | 7.190 lbs/ft | ||||
| 6" | 6.625 od | 0.134 in | 6.357 id | 0.280 in | 6.065 id | 0.432 in | 5.761 id |
|
Weight (lbs/ft.) |
Steel | 9.30 lbs/ft | 18.99 lbs/ft | 28.60 lbs/ft | |||
| Stainless | |||||||
| Aluminum | 3.181 lbs/ft | 6.560 lbs/ft | 9.880 lbs/ft | ||||
| 8" | 8.625 od | 0.148 in | 8.329 id | 0.322 in | 7.981 id | 0.500 in | 7.625 id |
|
Weight (lbs/ft.) |
Steel | 13.41 lbs/ft | 28.58 lbs/ft | 43.43 lbs/ft | |||
| Stainless | |||||||
| Aluminum | 9.88 lbs/ft | 15.010 lbs/ft | |||||
|
*Nominal sizes apply - Pipe Size is the generic Industry Size Standard for reference only **Tolerances may vary slightly from each manufacturer |
|||||||
| Ga# | Sheet Steel | Galvanized Steel | Stainless Steel | Aluminum | Strip & Tubing | ||||
|---|---|---|---|---|---|---|---|---|---|
|
Ga (in.) |
Wgt (lb/ft2) |
Ga (in.) |
Wgt (lb/ft2) |
Ga (in.) |
Wgt (lb/ft2) |
Ga (in.) |
Wgt (lb/ft2) |
Ga (in.) |
|
| 38 | 0.0060 | 0.0062 | 0.0040 | ||||||
| 37 | 0.0064 | 0.0066 | 0.0045 | ||||||
| 36 | 0.0067 | 0.0070 | 0.0050 | 0.004 | |||||
| 35 | 0.0075 | 0.0078 | 0.0056 | 0.005 | |||||
| 34 | 0.0082 | 0.0086 | 0.0063 | 0.007 | |||||
| 33 | 0.0090 | 0.0094 | 0.0071 | 0.008 | |||||
| 32 | 0.0097 | 0.0102 | 0.0080 | 0.009 | |||||
| 31 | 0.0105 | 0.0109 | 0.0089 | 0.010 | |||||
| 30 | 0.0120 | 0.500 | 0.016 | 0.656 | 0.0125 | 0.0100 | 0.141 | 0.012 | |
| 29 | 0.0135 | 0.563 | 0.017 | 0.719 | 0.0141 | 0.0113 | 0.160 | 0.013 | |
| 28 | 0.0149 | 0.625 | 0.019 | 0.781 | 0.0156 | 0.0126 | 0.178 | 0.014 | |
| 27 | 0.0164 | 0.688 | 0.020 | 0.844 | 0.0172 | 0.0142 | 0.200 | 0.016 | |
| 26 | 0.0179 | 0.750 | 0.022 | 0.906 | 0.0187 | 0.756 | 0.0159 | 0.224 | 0.018 |
| 25 | 0.0209 | 0.875 | 0.025 | 1.031 | 0.0219 | 0.0179 | 0.253 | 0.020 | |
| 24 | 0.0239 | 1.000 | 0.028 | 1.156 | 0.0250 | 1.008 | 0.0201 | 0.284 | 0.022 |
| 23 | 0.0269 | 1.125 | 0.031 | 1.281 | 0.0281 | 0.0226 | 0.319 | 0.025 | |
| 22 | 0.0299 | 1.250 | 0.034 | 1.406 | 0.0312 | 1.26 | 0.0253 | 0.357 | 0.028 |
| 21 | 0.0329 | 1.375 | 0.037 | 1.531 | 0.0344 | 0.0285 | 0.402 | 0.032 | |
| 20 | 0.0359 | 1.500 | 0.040 | 1.656 | 0.0375 | 1.512 | 0.0320 | 0.452 | 0.035 |
| 19 | 0.0418 | 1.750 | 0.046 | 1.906 | 0.0437 | 0.0359 | 0.507 | 0.042 | |
| 18 | 0.0478 | 2.000 | 0.052 | 2.156 | 0.0500 | 2.016 | 0.0403 | 0.569 | 0.049 |
| 17 | 0.0538 | 2.250 | 0.058 | 2.406 | 0.0562 | 0.0453 | 0.639 | 0.058 | |
| 16 | 0.0598 | 2.500 | 0.064 | 2.656 | 0.0625 | 2.52 | 0.0508 | 0.717 | 0.065 |
| 15 | 0.0673 | 2.813 | 0.071 | 2.969 | 0.0703 | 0.0571 | 0.806 | 0.072 | |
| 14 | 0.0747 | 3.125 | 0.079 | 3.281 | 0.0781 | 3.15 | 0.0641 | 0.905 | 0.083 |
| 13 | 0.0897 | 3.750 | 0.093 | 3.906 | 0.0937 | 0.0720 | 1.016 | 0.095 | |
| 12 | 0.1046 | 4.375 | 0.108 | 4.531 | 0.1094 | 4.41 | 0.0808 | 1.140 | 0.109 |
| 11 | 0.1196 | 5.000 | 0.123 | 5.156 | 0.1250 | 5.04 | 0.0907 | 1.280 | 0.120 |
| 10 | 0.1345 | 5.625 | 0.138 | 5.781 | 0.1406 | 5.67 | 0.1019 | 1.438 | 0.134 |
| 9 | 0.1495 | 6.250 | 0.153 | 6.406 | 0.1562 | 0.1144 | 1.614 | 0.148 | |
| 8 | 0.1644 | 6.875 | 0.168 | 7.031 | 0.1719 | 6.93 | 0.1285 | 1.813 | 0.165 |
| 7 | 0.1793 | 7.500 | 0.1875 | 7.871 | 0.1443 | 2.036 | 0.180 | ||
| 6 | 0.1943 | 8.125 | 0.2031 | 0.1620 | 2.286 | 0.203 | |||
| 5 | 0.2092 | 8.750 | 0.2187 | 0.1819 | 0.220 | ||||
| 4 | 0.2242 | 9.375 | 0.2344 | 0.2043 | 0.238 | ||||
| 3 | 0.2391 | 10.00 | 0.2500 | 0.2294 | 0.259 | ||||
| 2 | 0.2656 | 0.2576 | 0.284 | ||||||
| 1 | 0.2812 | 0.2893 | 0.300 | ||||||
