Strut Galvanized 4- Hole Angle Splice 9/16″ Hole

Strut Galvanized 4- Hole Angle Splice 9/16" Hole

Strut Galvanized 4- Hole Angle Splice 9/16″ Hole

$14.00

Part#: APGFS-5109EG Categories ,
DESCRIPTION

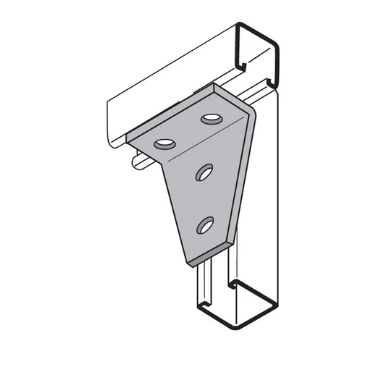

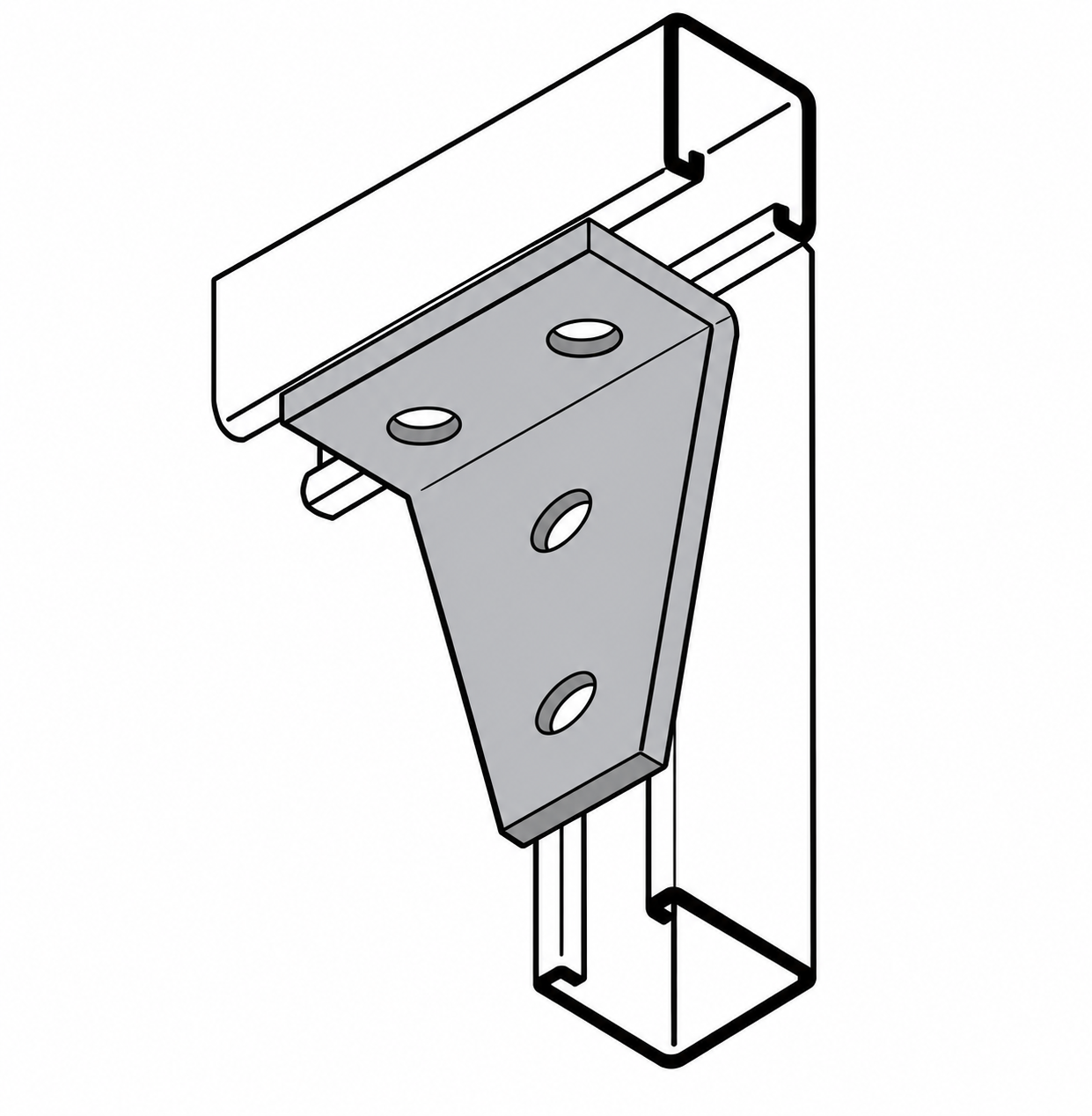

A strut galvanized 4-hole angle splice with 9/16″ holes is an angle fitting used in construction and building applications. It is made of galvanized steel and features four holes designed for bolts or fasteners with a diameter of 9/16″. This type of fitting is used in framing and mounting systems to join and reinforce strut channels, providing structural support and stability in various construction projects.

Hole Diameter : 9/16″

Hole Spacing End Distance : 13/16″

Hole Spacing Center to Center : 1-7/8″

Thickness : 1/4″
Width : 1-5/8″
Dimensions: 3-1/2 x 4-1/8
* Prices subject to change without notice due to the Metals Market fluctuations. | All ‘value length’ and ‘value pack’ item measurements are subject to a “mill tolerance”. | A product may be produced several thousandths of an inch, either over or under the stated thickness, and still be within “mill tolerance”. Since we cut the material specifically for your order, they follow these tolerances: Length: +0.125″ / -0.062” – Please note that during cutting, the blade removes about 1/16″ of material (kerf). This is a normal part of the process and is already considered within the stated tolerances.
