Stainless Steel Angle T-304

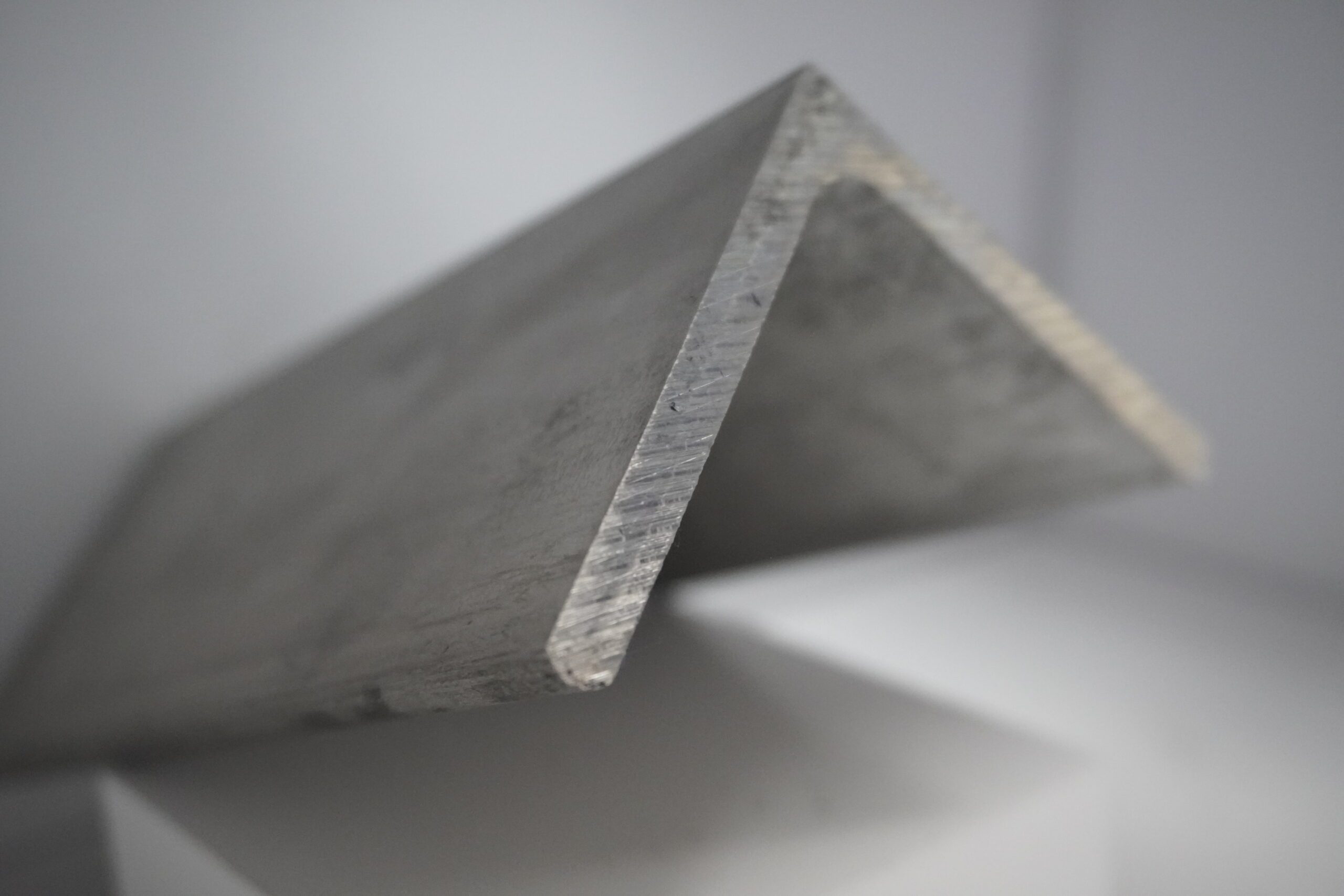

Type 304 stainless steel (angle, etc) is a steel alloy containing chromium (18 to 20%) and nickel (8 to 10%) for advanced corrosion resistance, even at high temperatures. It is non-magnetic, and much more corrosion resistant than stainless steel that contains only chromium. Ideal for use under the most adverse conditions.

Shop these Stainless Steel Angle T-304 Categories

Stainless Steel Angle Inside Corner 1-1/2 x 1-1/2 x 22GA – 5′
SAN411211222I
SHOP THIS ITEM $24.24 Add to cart
Stainless Steel Angle Outside Corner 1-1/2 x 1-1/2 x 22GA – 5′
SSAN411211222
SHOP THIS ITEM $24.24 Add to cart
3/4″ x 3/4″ x 1/8″ Stainless Steel Angle T-304
SSAN4343418
SHOP THIS ITEM $8.42 – $22.11 Select options This product has multiple variants. The options may be chosen on the product page
1″ x 1″ x 1/8″ Stainless Steel Angle T-304
SSAN41118
SHOP THIS ITEM $9.70 – $28.49 Select options This product has multiple variants. The options may be chosen on the product page
1″ x 1″ x 3/16″ Stainless Steel Angle T-304
SSAN411316
SHOP THIS ITEM $11.73 – $38.64 Select options This product has multiple variants. The options may be chosen on the product page
1″ x 1″ x 1/4″ Stainless Steel Angle T-304
SSAN41114
SHOP THIS ITEM $13.64 – $48.21 Select options This product has multiple variants. The options may be chosen on the product page
1-1/4″ x 1-1/4″ x 1/8″ Stainless Steel Angle T-304
SSAN411411418
SHOP THIS ITEM $10.86 – $34.29 Select options This product has multiple variants. The options may be chosen on the product page
1-1/4″ x 1-1/4″ x 3/16″ Stainless Steel Angle T-304
SSAN4114114316
SHOP THIS ITEM $13.58 – $47.92 Select options This product has multiple variants. The options may be chosen on the product page
1-1/4″ x 1-1/4″ x 1/4″ Stainless Steel Angle T-304
SSAN411411414
SHOP THIS ITEM $16.14 – $60.68 Select options This product has multiple variants. The options may be chosen on the product page
1-1/2″ x 1-1/2″ x 1/8″ Stainless Steel Angle T-304
SSAN411211218
SHOP THIS ITEM $12.13 – $40.67 Select options This product has multiple variants. The options may be chosen on the product page
1-1/2″ x 1-1/2″ x 3/16″ Stainless Steel Angle T-304
SSAN4112112316
SHOP THIS ITEM $15.50 – $57.49 Select options This product has multiple variants. The options may be chosen on the product page
1-1/2″ x 1-1/2″ x 1/4″ Stainless Steel Angle T-304
SSAN411211214
SHOP THIS ITEM $18.57 – $72.86 Select options This product has multiple variants. The options may be chosen on the product page
2″ x 2″ x 1/8″ Stainless Steel Angle T-304
SSAN42218
SHOP THIS ITEM $14.57 – $52.85 Select options This product has multiple variants. The options may be chosen on the product page
2″ x 2″ x 3/16″ Stainless Steel Angle T-304
SSAN422316
SHOP THIS ITEM $19.15 – $75.76 Select options This product has multiple variants. The options may be chosen on the product page
2″ x 2″ x 1/4″ Stainless Steel Angle T-304
SSAN42214
SHOP THIS ITEM $23.50 – $97.51 Select options This product has multiple variants. The options may be chosen on the product page
2-1/2″ x 2-1/2″ x 3/16″ Stainless Steel Angle T-304
SSAN4212212316
SHOP THIS ITEM $22.81 – $94.03 Select options This product has multiple variants. The options may be chosen on the product page
2-1/2″ x 2-1/2″ x 1/4″ Stainless Steel Angle T-304
SSAN421221214
SHOP THIS ITEM $28.84 – $124.19 Select options This product has multiple variants. The options may be chosen on the product page
3″ x 3″ x 3/16″ Stainless Steel Angle T-304
SSAN433316
SHOP THIS ITEM $26.52 – $112.59 Select options This product has multiple variants. The options may be chosen on the product page
3″ x 3″ x 1/4″ Stainless Steel Angle T-304
SSAN43314
SHOP THIS ITEM $33.48 – $147.39 Select options This product has multiple variants. The options may be chosen on the product page
4″ x 4″ x 1/4″ Stainless Steel Angle T-304
SSAN44414
SHOP THIS ITEM $43.34 – $196.69 Select options This product has multiple variants. The options may be chosen on the product page

* Prices subject to change without notice due to the Metals Market fluctuations.
* All ‘value length’ and ‘value pack’ item measurements are subject to a “mill tolerance”. A product may be produced several thousandths of an inch, either over or under the stated thickness, and still be within “mill tolerance”. This does NOT apply to Cut To Size items. Those will be +.125″, -0.00″ tolerances.

Pipe Size*	O.D. (in.)	Schedule (10, 40, 80) Wall Thickness (in.)**
		Sch.10		Sch.40		Sch.80
		Wall (in)	I.D. (in)	Wall (in)	I.D. (in)	Wall (in)	I.D. (in)

1/8"	0.41 od	0.049 in	0.312 id	0.07 in	0.269 id
Weight (lbs/ft.)	Steel	0.183 lbs/ft		0.247 lbs/ft
	Stainless	0.183 lbs/ft		0.247 lbs/ft
	Aluminum
1/4"	0.54 od	0.065 in	0.410 id	0.090 in	0.364 id	0.119 in	0.302 id
Weight (lbs/ft.)	Steel	0.333 lbs/ft		0.429 lbs/ft		0.535 lbs/ft
	Stainless	0.333 lbs/ft		0.429 lbs/ft		0.535 lbs/ft
	Aluminum			0.147 lbs/ft
3/8"	0.675 od	0.065 in	0.545 id	0.091 in	0.493 id	0.126 in	0.423 id
Weight (lbs/ft.)	Steel	0.420 lbs/ft		0.570 lbs/ft		0.740 lbs/ft
	Stainless	0.420 lbs/ft		0.570 lbs/ft		0.740 lbs/ft
	Aluminum			0.196 lbs/ft
1/2"	0.840 od	0.083 in	0.674 id	0.109 in	0.622 id	0.147 in	0.546 id
Weight (lbs/ft.)	Steel	0.670 lbs/ft		0.850 lbs/ft		1.090 lbs/ft
	Stainless	0.670 lbs/ft		0.850 lbs/ft		1.090 lbs/ft
	Aluminum			0.294 lbs/ft		0.384 lbs/ft
3/4"	1.050 od	0.083 in	0.884 id	0.113 in	0.824 id	0.154 in	0.742 id
Weight (lbs/ft.)	Steel	0.86 lbs/ft		1.13 lbs/ft		1.48 lbs/ft
	Stainless	0.86 lbs/ft		1.13 lbs/ft		1.48 lbs/ft
	Aluminum			0.391		0.520
1"	1.315 od	0.109 in	1.097 id	0.133 in	1.049 id	0.179 in	0.957 id
Weight (lbs/ft.)	Steel	1.41 lbs/ft		1.68 lbs/ft		2.17 lbs/ft
	Stainless	1.41 lbs/ft		1.68 lbs/ft		2.17 lbs/ft
	Aluminum	0.481 lbs/ft		0.581 lbs/ft		0.781 lbs/ft
1-1/4"	1.66 od	0.109 in	1.442 id	0.140 in	1.380 id	0.191 in	1.278 id
Weight (lbs/ft.)	Steel	1.81 lbs/ft		2.27 lbs/ft		3.00 lbs/ft
	Stainless	1.81 lbs/ft		2.27 lbs/ft		3.00 lbs/ft
	Aluminum	0.618 lbs/ft		0.785 lbs/ft		1.040 lbs/ft
1-1/2"	1.90 od	0.109 in	1.682 id	0.145 in	1.610 id	0.200 in	1.500 id
Weight (lbs/ft.)	Steel	2.09 lbs/ft		2.72 lbs/ft		3.63 lbs/ft
	Stainless	2.09 lbs/ft		2.72 lbs/ft		3.63 lbs/ft
	Aluminum	0.714 lbs/ft		0.939 lbs/ft		1.260 lbs/ft
2"	2.375 od	0.109 in	2.157 id	0.154 in	2.067 id	0.218 in	1.939 id
Weight (lbs/ft.)	Steel	2.64 lbs/ft		3.66 lbs/ft		5.03 lbs/ft
	Stainless	2.64 lbs/ft		3.66 lbs/ft		5.03 lbs/ft
	Aluminum	0.903 lbs/ft		1.260 lbs/ft		1.740 lbs/ft
2-1/2"	2.875 od	0.120 in	2.635 id	0.203 in	2.469 id	0.276 in	2.323 id
Weight (lbs/ft.)	Steel	3.53 lbs/ft		5.80 lbs/ft		7.67 lbs/ft
	Stainless	3.53 lbs/ft		5.80 lbs/ft		7.67 lbs/ft
	Aluminum	1.209 lbs/ft		2.000 lbs/ft
3"	3.50 od	0.120 in	3.26 id	0.216 in	3.068 id	0.30 in	2.90 id
Weight (lbs/ft.)	Steel	4.34 lbs/ft		7.58 lbs/ft		10.26 lbs/ft
	Stainless	4.34 lbs/ft		7.58 lbs/ft		10.26 lbs/ft
	Aluminum	1.483 lbs/ft		2.620 lbs/ft		3.55 lbs/ft
3-1/2"	4.00 od	0.120 in	3.76 id	0.226 in	3.550 id	0.318 in	3.360 id
Weight (lbs/ft.)	Steel	4.98 lbs/ft		9.12 lbs/ft		12.52 lbs/ft
	Stainless	4.98 lbs/ft		9.12 lbs/ft		12.52 lbs/ft
	Aluminum			3.150 lbs/ft		4.33 lbs/ft
4"	4.50 od	0.120 in	4.26 id	0.237 in	4.026 id	0.337 in	3.826 id
Weight (lbs/ft.)	Steel	5.62 lbs/ft		10.80 lbs/ft		15.00 lbs/ft
	Stainless	5.62 lbs/ft		10.80 lbs/ft		15.00 lbs/ft
	Aluminum	1.922 lbs/ft		3.730 lbs/ft		5.180 lbs/ft
5"	5.563 od	0.134 in	5.295 id	0.258 in	5.047 id	0.375 in	4.813 id
Weight (lbs/ft.)	Steel	7.78 lbs/ft		14.63 lbs/ft		20.80 lbs/ft
	Stainless	7.78 lbs/ft		14.63 lbs/ft		20.80 lbs/ft
	Aluminum	2.660 lbs/ft		5.050 lbs/ft		7.190 lbs/ft
6"	6.625 od	0.134 in	6.357 id	0.280 in	6.065 id	0.432 in	5.761 id
Weight (lbs/ft.)	Steel	9.30 lbs/ft		18.99 lbs/ft		28.60 lbs/ft
	Stainless	9.30 lbs/ft		18.99 lbs/ft		28.60 lbs/ft
	Aluminum	3.181 lbs/ft		6.560 lbs/ft		9.880 lbs/ft
8"	8.625 od	0.148 in	8.329 id	0.322 in	7.981 id	0.500 in	7.625 id
Weight (lbs/ft.)	Steel	13.41 lbs/ft		28.58 lbs/ft		43.43 lbs/ft
	Stainless	13.41 lbs/ft		28.58 lbs/ft		43.43 lbs/ft
	Aluminum			9.88 lbs/ft		15.010 lbs/ft
Nominal sizes apply - Pipe Size is the generic Industry Size Standard for reference only *Tolerances may vary slightly from each manufacturer

Ga#	Sheet Steel		Galvanized Steel		Stainless Steel		Aluminum		Strip & Tubing
Ga#	Ga (in.)	Wgt (lb/ft²)	Ga (in.)	Wgt (lb/ft²)	Ga (in.)	Wgt (lb/ft²)	Ga (in.)	Wgt (lb/ft²)	Ga (in.)
38	0.0060				0.0062		0.0040
37	0.0064				0.0066		0.0045
36	0.0067				0.0070		0.0050		0.004
35	0.0075				0.0078		0.0056		0.005
34	0.0082				0.0086		0.0063		0.007
33	0.0090				0.0094		0.0071		0.008
32	0.0097				0.0102		0.0080		0.009
31	0.0105				0.0109		0.0089		0.010
30	0.0120	0.500	0.016	0.656	0.0125		0.0100	0.141	0.012
29	0.0135	0.563	0.017	0.719	0.0141		0.0113	0.160	0.013
28	0.0149	0.625	0.019	0.781	0.0156		0.0126	0.178	0.014
27	0.0164	0.688	0.020	0.844	0.0172		0.0142	0.200	0.016
26	0.0179	0.750	0.022	0.906	0.0187	0.756	0.0159	0.224	0.018
25	0.0209	0.875	0.025	1.031	0.0219		0.0179	0.253	0.020
24	0.0239	1.000	0.028	1.156	0.0250	1.008	0.0201	0.284	0.022
23	0.0269	1.125	0.031	1.281	0.0281		0.0226	0.319	0.025
22	0.0299	1.250	0.034	1.406	0.0312	1.26	0.0253	0.357	0.028
21	0.0329	1.375	0.037	1.531	0.0344		0.0285	0.402	0.032
20	0.0359	1.500	0.040	1.656	0.0375	1.512	0.0320	0.452	0.035
19	0.0418	1.750	0.046	1.906	0.0437		0.0359	0.507	0.042
18	0.0478	2.000	0.052	2.156	0.0500	2.016	0.0403	0.569	0.049
17	0.0538	2.250	0.058	2.406	0.0562		0.0453	0.639	0.058
16	0.0598	2.500	0.064	2.656	0.0625	2.52	0.0508	0.717	0.065
15	0.0673	2.813	0.071	2.969	0.0703		0.0571	0.806	0.072
14	0.0747	3.125	0.079	3.281	0.0781	3.15	0.0641	0.905	0.083
13	0.0897	3.750	0.093	3.906	0.0937		0.0720	1.016	0.095
12	0.1046	4.375	0.108	4.531	0.1094	4.41	0.0808	1.140	0.109
11	0.1196	5.000	0.123	5.156	0.1250	5.04	0.0907	1.280	0.120
10	0.1345	5.625	0.138	5.781	0.1406	5.67	0.1019	1.438	0.134
9	0.1495	6.250	0.153	6.406	0.1562		0.1144	1.614	0.148
8	0.1644	6.875	0.168	7.031	0.1719	6.93	0.1285	1.813	0.165
7	0.1793	7.500			0.1875	7.871	0.1443	2.036	0.180
6	0.1943	8.125			0.2031		0.1620	2.286	0.203
5	0.2092	8.750			0.2187		0.1819		0.220
4	0.2242	9.375			0.2344		0.2043		0.238
3	0.2391	10.00			0.2500		0.2294		0.259
2					0.2656		0.2576		0.284
1					0.2812		0.2893		0.300
