4″ x 1.647″ x .247″ web Aluminum Channel 6061-T6 Structural

aluminum metal

4″ x 1.647″ x .247″ web Aluminum Channel 6061-T6 Structural

$18.53 – $86.17

Part#: ACH614247 Category
DESCRIPTION

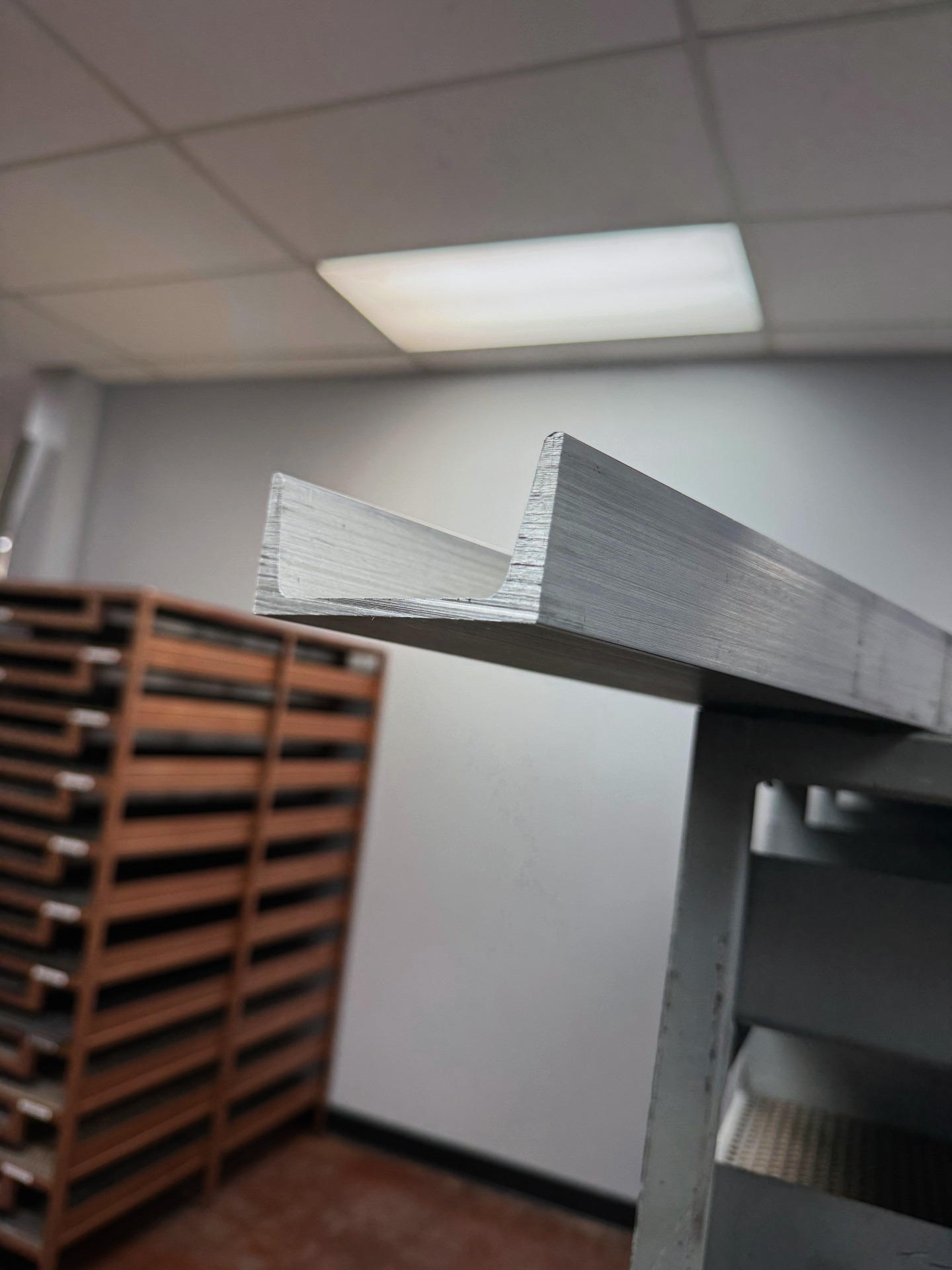

An aluminum channel 4” x 1.647” x 0.247”, 6061-T6 is a structural channel

📐Basic Description:

  • Material: Aluminum Alloy 6061, Temper T6
  • Shape: Structural Channel (“C” or “U” shaped)
  • Dimensions (in inches):
    • 4.000″ = Width of the base (web)
    • 1.647″ = Height of the vertical legs (the “C” shape)
    • 0.247″ = Wall thickness (typically the same for both the web and flanges)

🔩 Material Properties (6061-T6 Aluminum):

  • Tensile Strength: ~45,000 psi
  • Yield Strength: ~40,000 psi
  • Modulus of Elasticity: ~10 million psi
  • Density: 0.0975 lb/in³
  • Corrosion Resistance: Excellent
  • Weldability / Machinability: Very good

⚖️ Approximate Weight:

To estimate weight per foot:  weight: ~3.10 to 3.30 lbs/ft

🛠️Structural Use:

Due to its thicker wall (0.247″) and taller profile (4″), this channel is well-suited for:

  • Load-bearing structural frames
  • Trailer construction
  • Industrial shelving or equipment frames
  • Marine, aerospace, or vehicle reinforcement
  • Architectural bracing or framing

4″ wide x 1.647″ leg x .247″web Aluminum Channel 6061 Structural

* Prices subject to change without notice due to the Metals Market fluctuations.
* All ‘value length’ and ‘value pack’ item measurements are subject to a “mill tolerance”. A product may be produced several thousandths of an inch, either over or under the stated thickness, and still be within “mill tolerance”. This does NOT apply to Cut To Size items. Those will be +.125″, -0.00″ tolerances.
